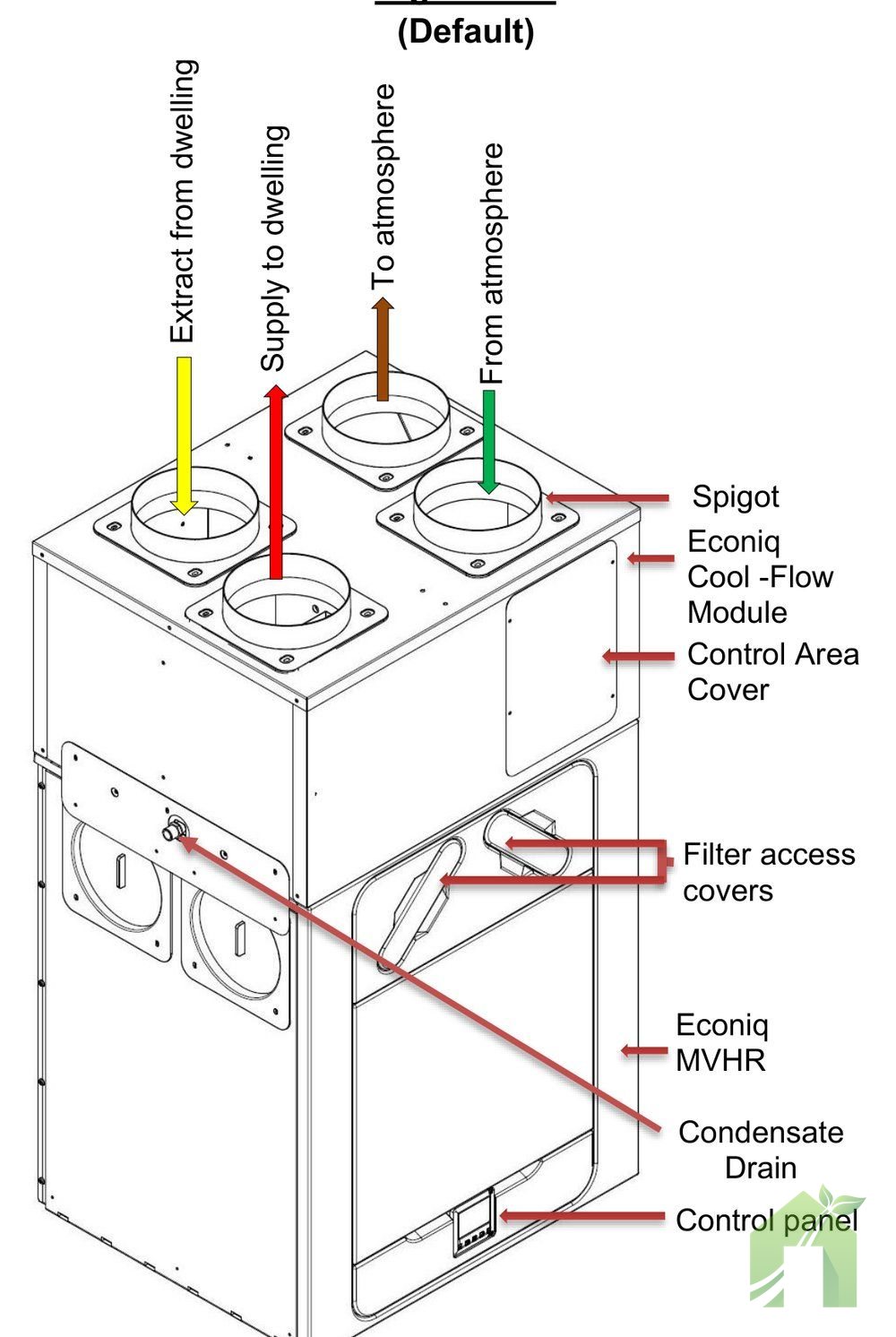

A cooling module that sits on top of the Econiq. In winter you keep up to 93% heat recovery. In summer the bypass first brings in cooler outside air for free; when that is not enough, Cool-Flow switches on by itself and cools the fresh air going into the rooms until the house is back at the comfort temperature you set.
- Rated cooling capacity 3.2 kW; about 1.1 kW electrical input.
- Fully automatic; follows your comfort temperature.
- Designed for Part O and TM59 overheating rules, plus Part F and Part L.
- Cooled air reaches bedrooms and living areas through the MVHR supply ducts, with no AC units on the walls.
- Wall-mounted (413887) or floor-mounted (413888).
What it can really do
| Outside | 83 l/s | 111 l/s | 139 l/s | 167 l/s | Air into rooms |
|---|---|---|---|---|---|
| 35 °C heatwave | 2.39 kW | 3.21 kW | 3.83 kW | 4.37 kW | 17.5–18.0 °C |
| 31 °C hot day | 2.06 kW | 2.62 kW | 3.12 kW | 3.72 kW | 15.9–16.5 °C |
| 27 °C warm day | 1.69 kW | 2.31 kW | 2.52 kW | 2.97 kW | 13.5–14.6 °C |
Honest expectations
Cool-Flow cools the fresh air your ventilation already supplies. It takes the edge off hot days and stops the house overheating, but it is not a split air-conditioner in every room: airflow is set by your ventilation design, so the cooling is spread across the house.
Installation needs about 100 kg on a wall or floor kit, a separate 13 A supply for the module, a condensate drain, and an installer qualified to handle its flammable refrigerant (max 0.7 kg). Cool-Flow module warranty: 2 years, parts.
Price on request. Ask us about cooling for your home.
Call: +353 57 851 1416 (answered straight away) · WhatsApp: +353 83 427 5659 · [email protected]
Eco Vent is a Vent-Axia trained installer. See our MVHR installation service or ask for a quote.
